Link Hardware Heavy Duty Venice 074 Series Short Back Plate Wall Mount Hinge
SKU
V074
Categories Hinges, Link Hardware - All Products, Shower Hardware
- Wall mount and short back plate hinges
- Hinges can swing 90 degrees in and 90 degrees out
- Suitable for glass panels of thickness 3/8″ to 1/2″
- Maximum weight for 2 hinges is 110 lbs.
- Maximum weight for 3 hinges is 130 lbs.
- Made from solid brass

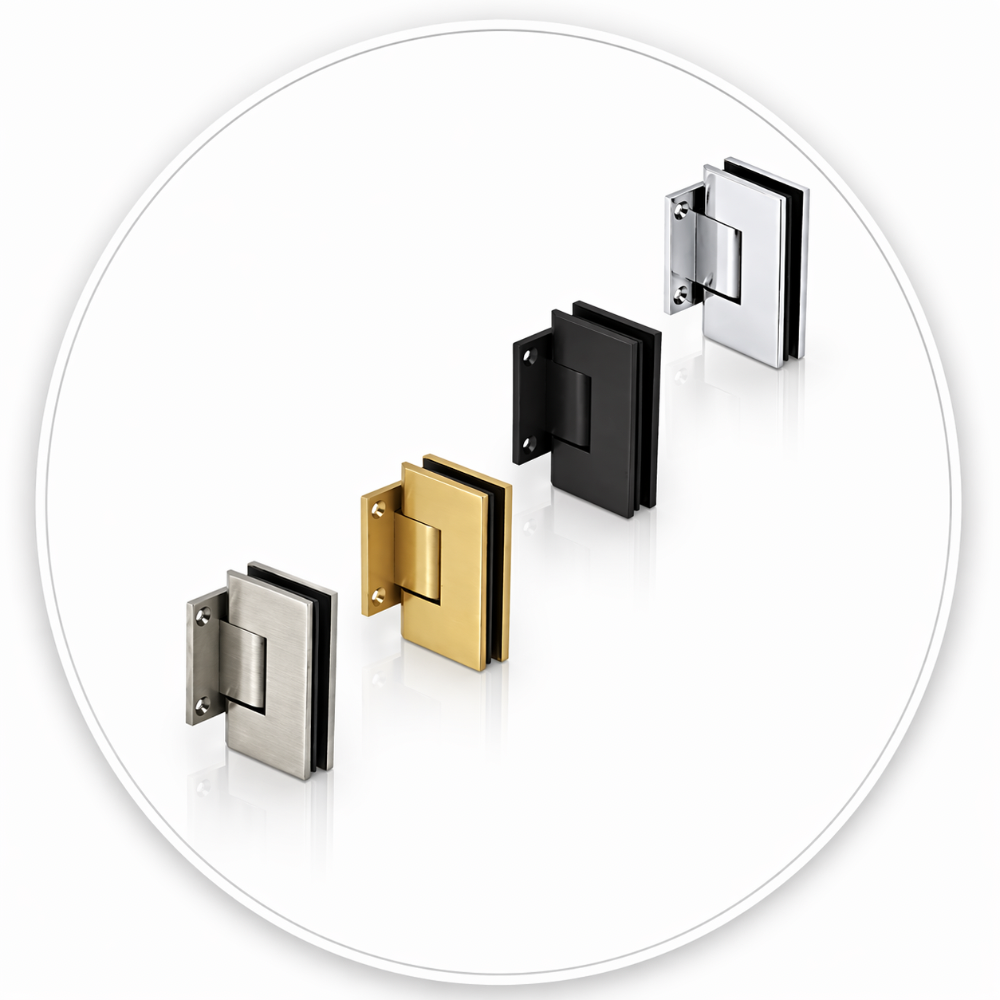

- Available in a variety of colors and finishes
Link Hardware Venice 074 Series Short Back Plate Wall Mount Hinges are the perfect solution for larger and heavier doors that simply can’t be held up by traditional standard-sized hinges. They are suitable for glasses of thickness 3/8” to 1/2″ and those as wide as 34″. Venice 074 Series Wall Mount Hinges allow doors to swing 90 degrees in and 90 degrees out, and are self-centering within 15 degrees of the closing position. For the safety of “mouse-ears” cut-outs, the two steel pins should be left in place, they make the Vienna Hinge compatible with its own Link Hardware “mouse-ears” cut-out. However, removing the two pins can help achieve greater adjustability.

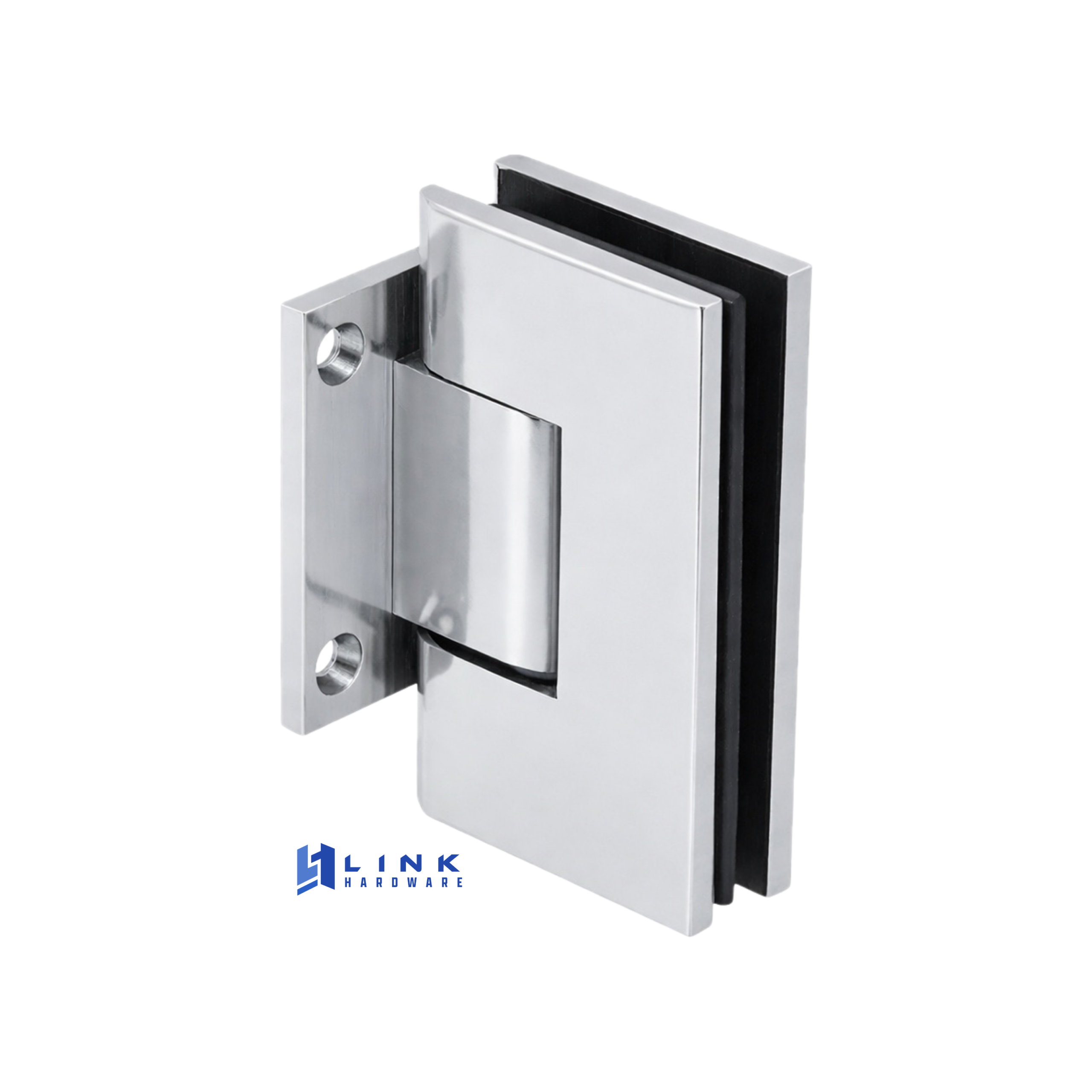

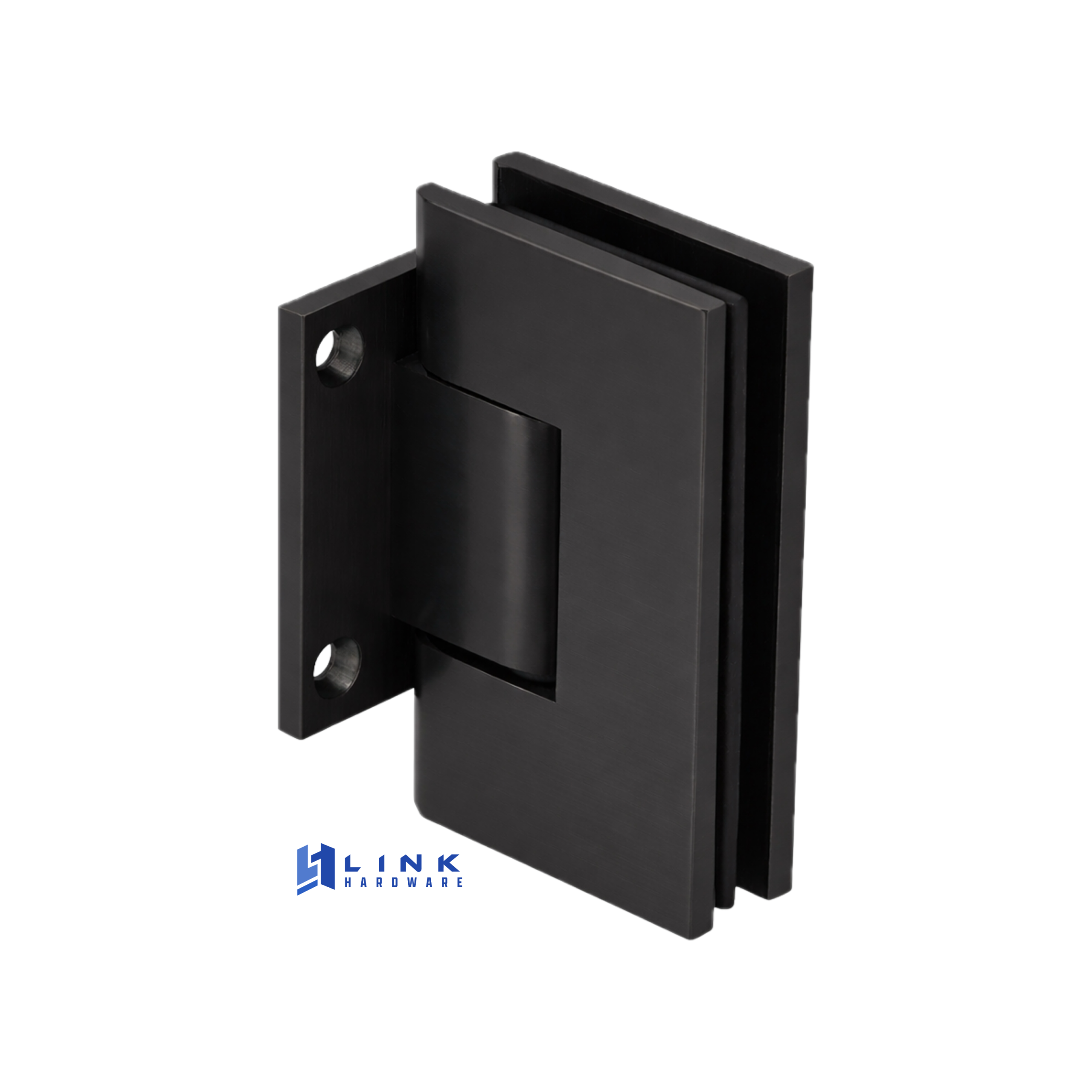

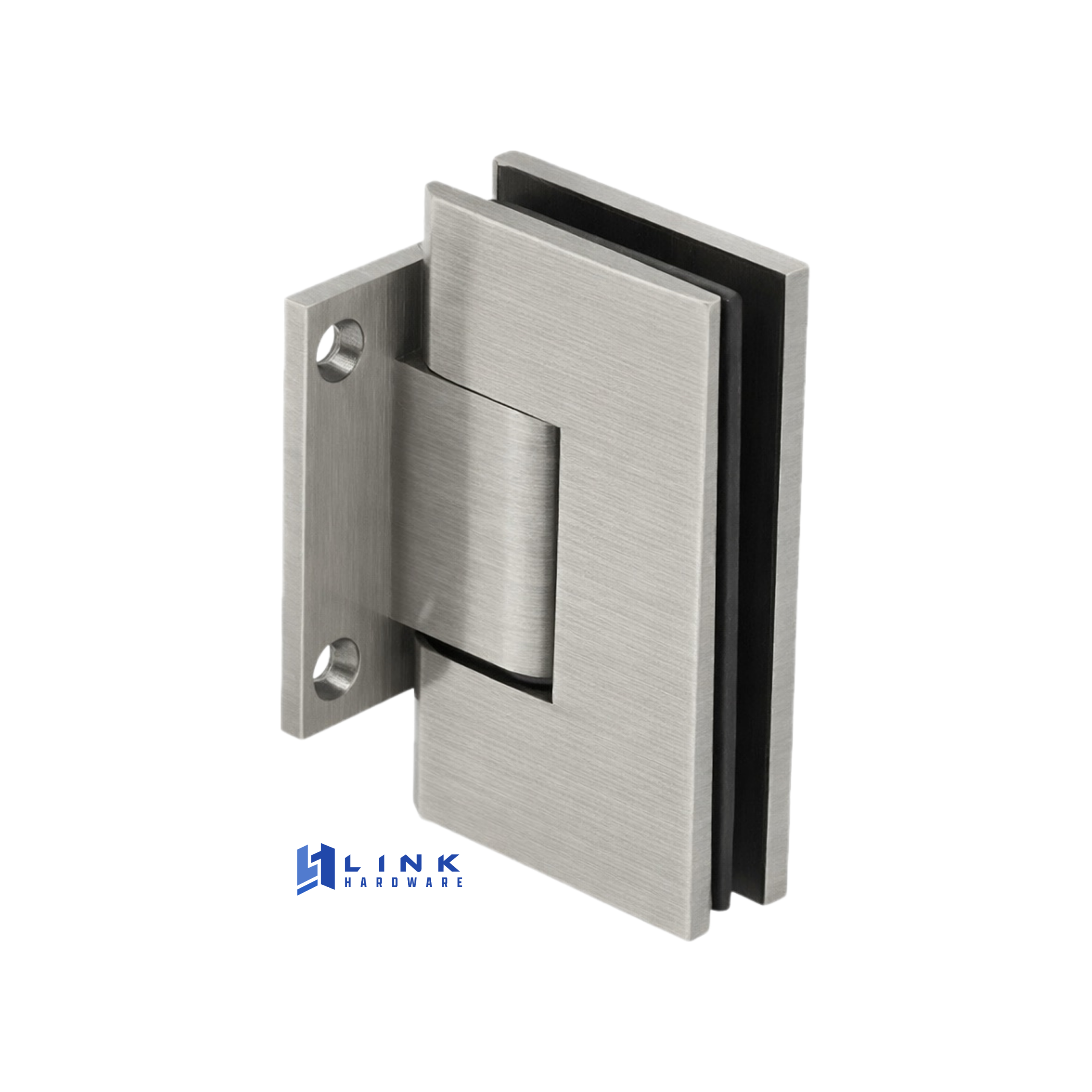

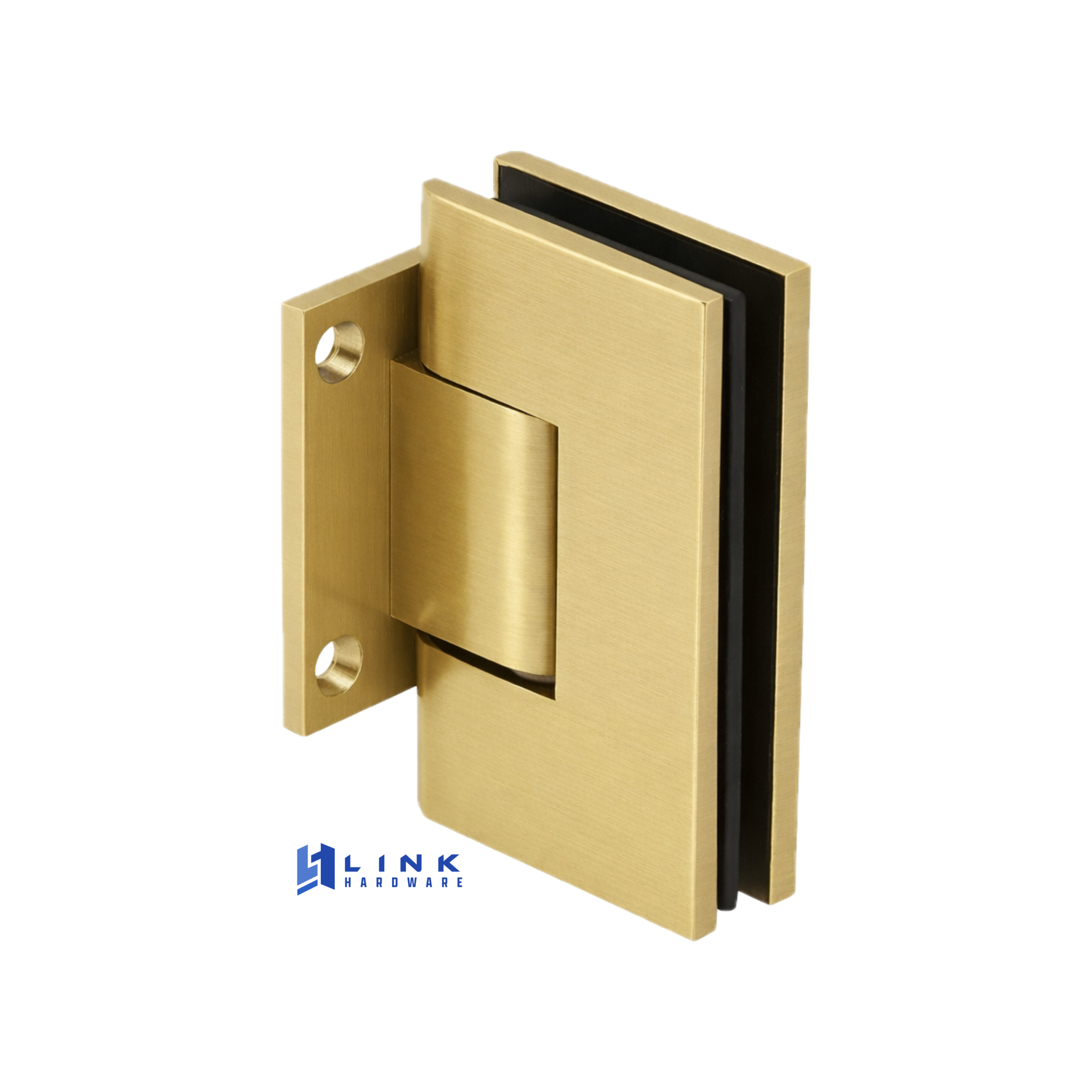

Finish: CH, MBL, BN, SB
