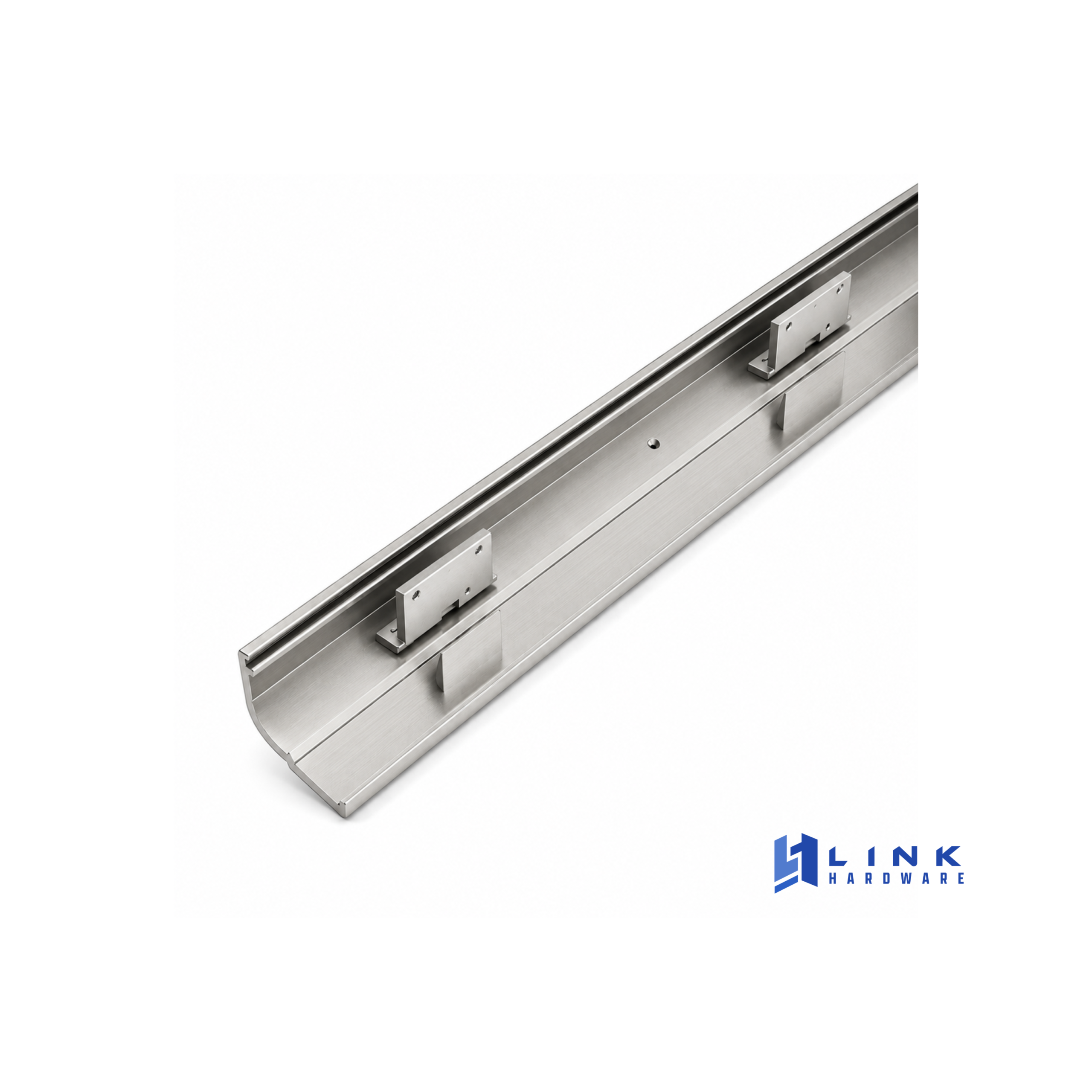

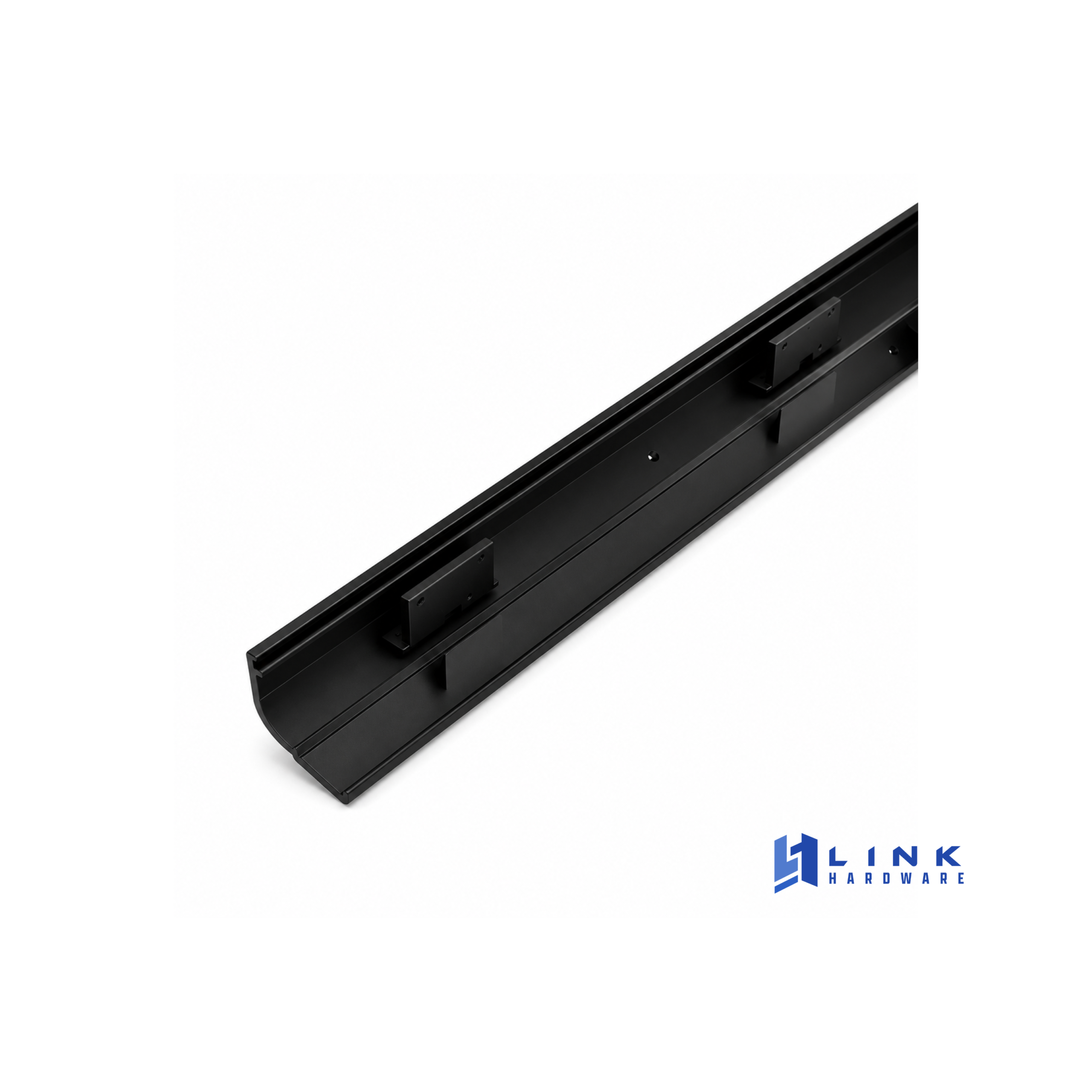

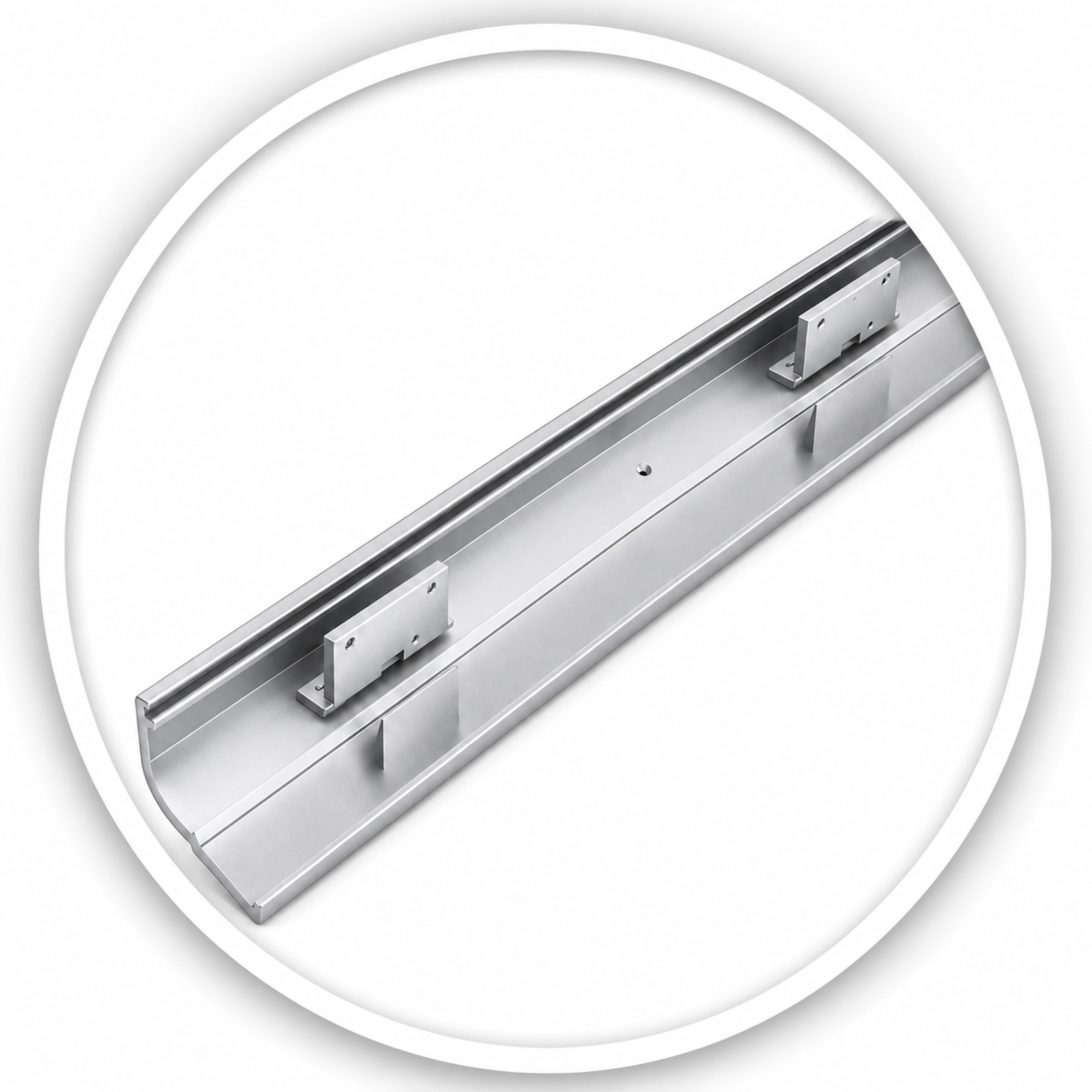

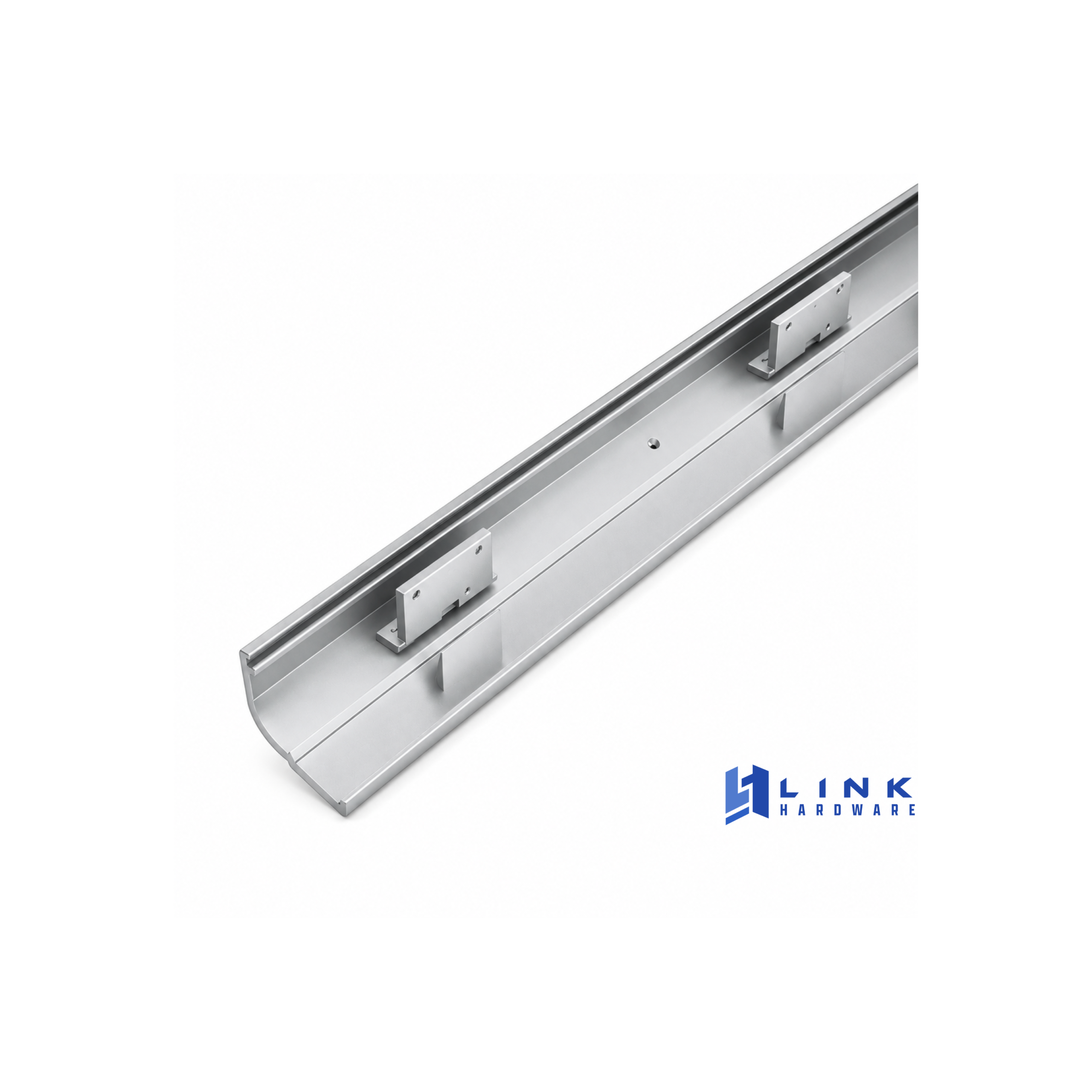

Link Hardware 10′ Mechanical Glazing Channel for 3/8” to 1/2″
SKU
MCHANNEL
Categories Channels, Commercial Hardware, Link Hardware - All Products
Link Hardware Mechanical Glazing Channel is a dry-glazed system that does not require wet silicone glazing. It is easy to install with its two-piece front load clamp-on channel and is used where the ‘lift and drop’ applications are not possible. Pre-drilled and tapped holes for channel clamps are provided every 11-13/16″ on center
- Standard channel requires no holes in the glass
- Standard 10′ length
- For use with monolithic tempered glass
- Suitable for use with glass panels of thickness 3/8” to 1/2″
- Available in different finishes
Finish: A, BS, PS, MBL
