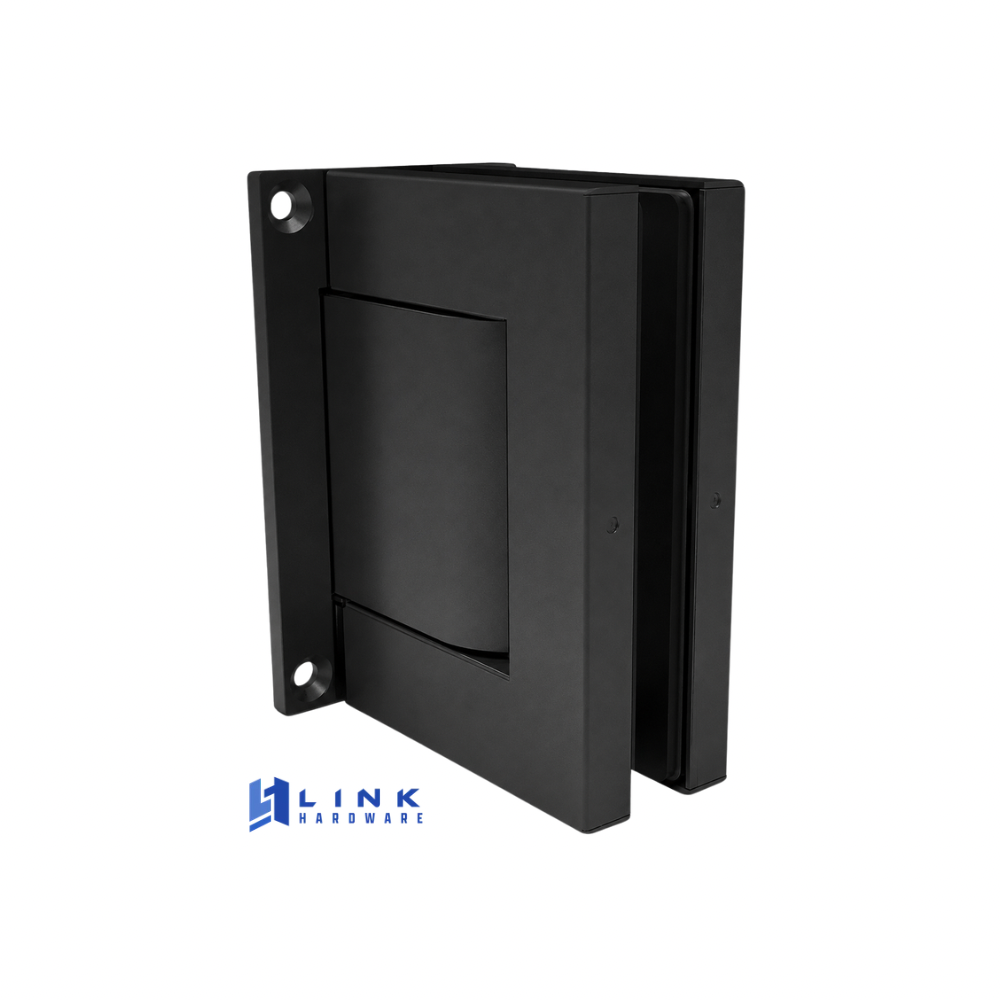

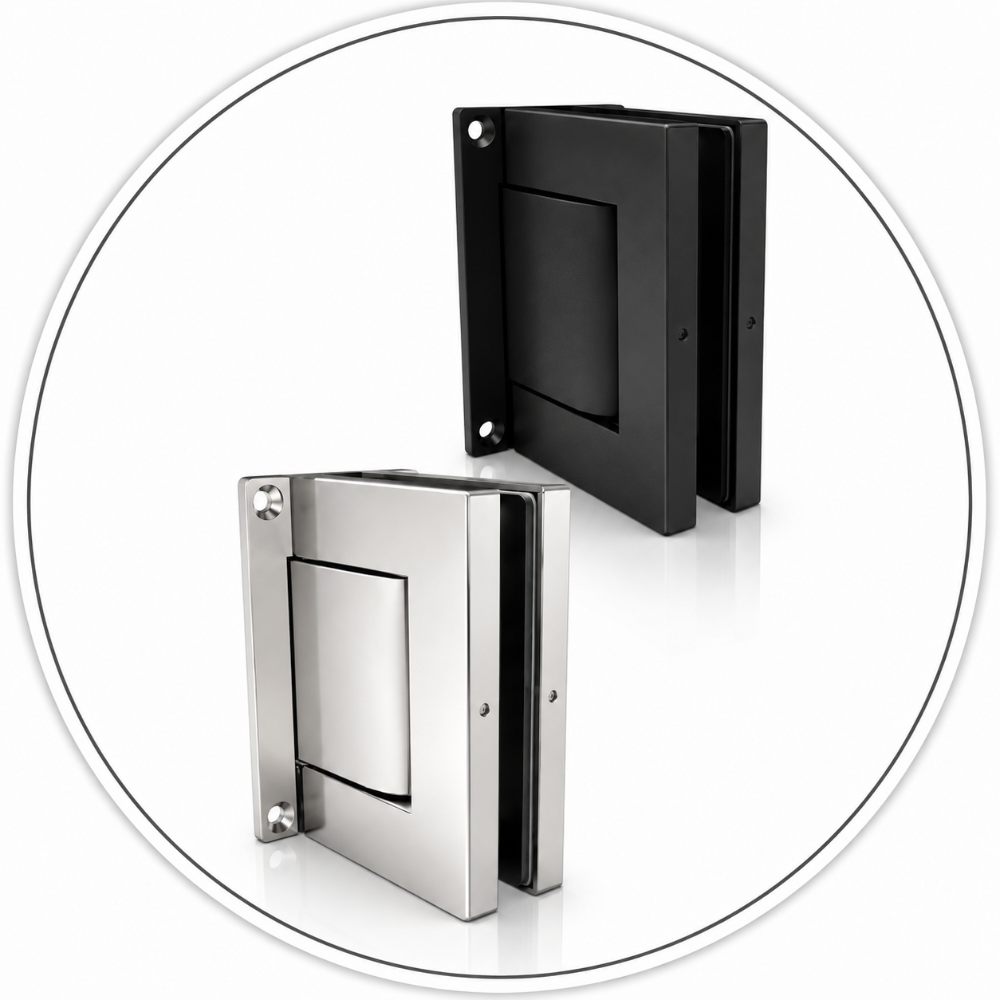

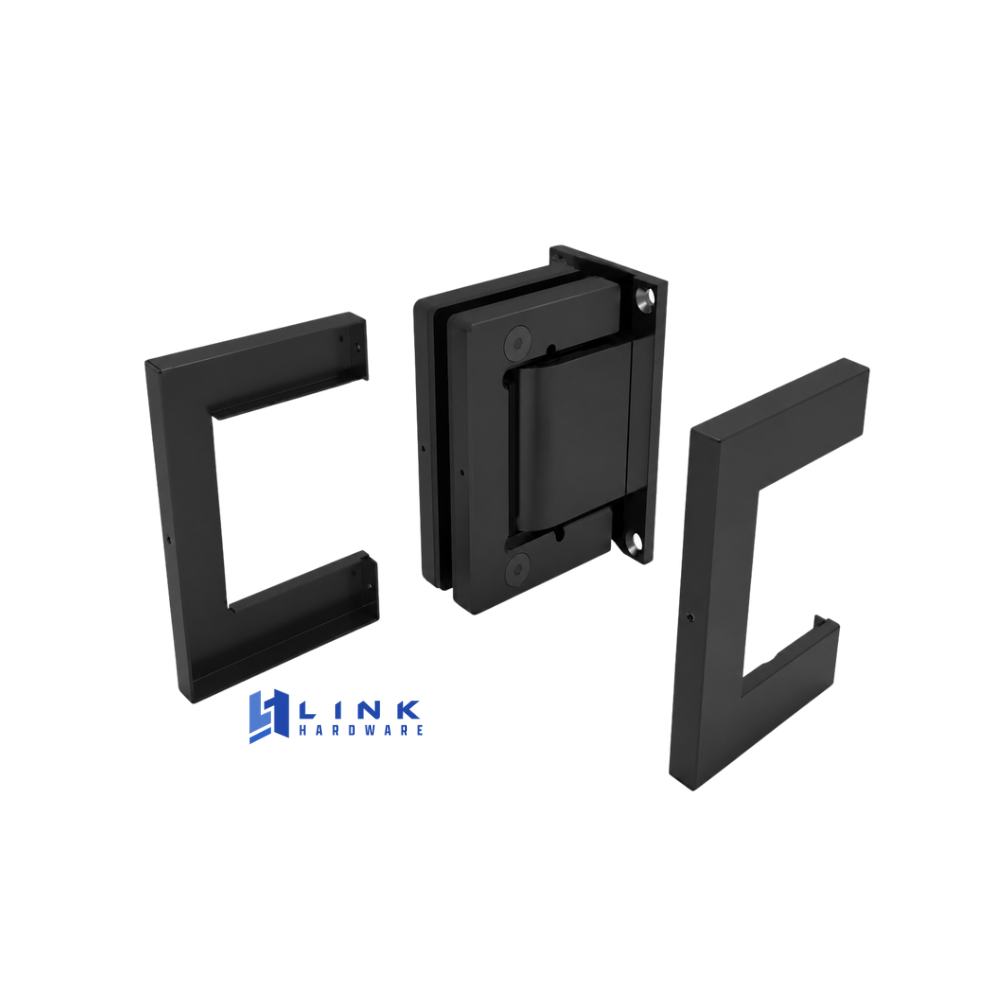

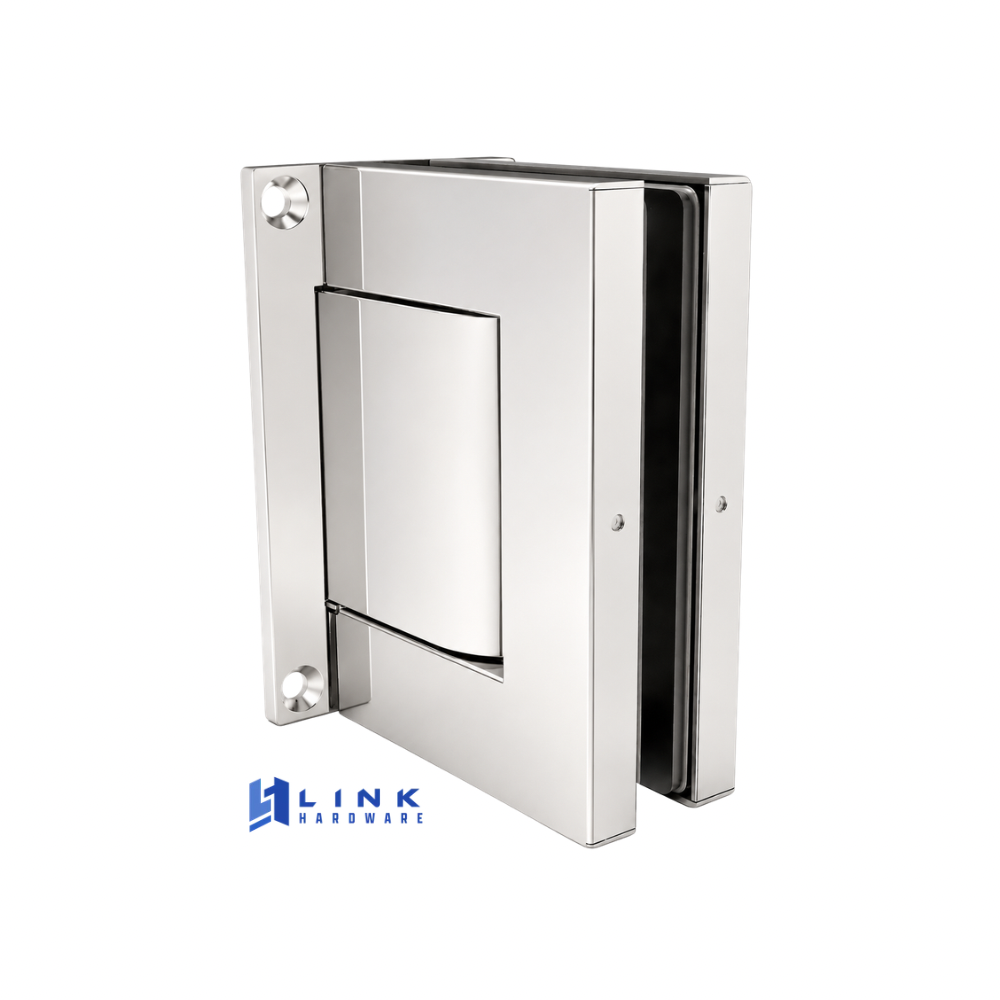

Link Hardware Casma Hydraulic Wall Mount Square Hinge
SKU
4LC1S
Categories Commercial Hardware, Hinges, Link Hardware - All Products
- Max weight 154lbs using one hydraulic hinge – 2 hinges can carry weight up to 220 lbs
- Suitable for 3/8” and 9/16”thick tempered safety glass
This Hydraulic Hinge gently closes glass doors, providing a sophisticated alternative to traditional floor springs and patch fittings. If the door weighs less than 154 lbs., only one hydraulic hinge is needed at the bottom, and a free-swinging hinge at the top. If the door weighs more than 154 lbs., two hydraulic hinges are required. A stopper must be installed to prevent the door from being opened beyond 90º. Latus Glass to Wall Hydraulic Hinge. Used for glass thicknesses between 3/8” and 9/16”as the active hinge (2 hinges can carry weight up to 220 lbs.) with max width of 39”.
