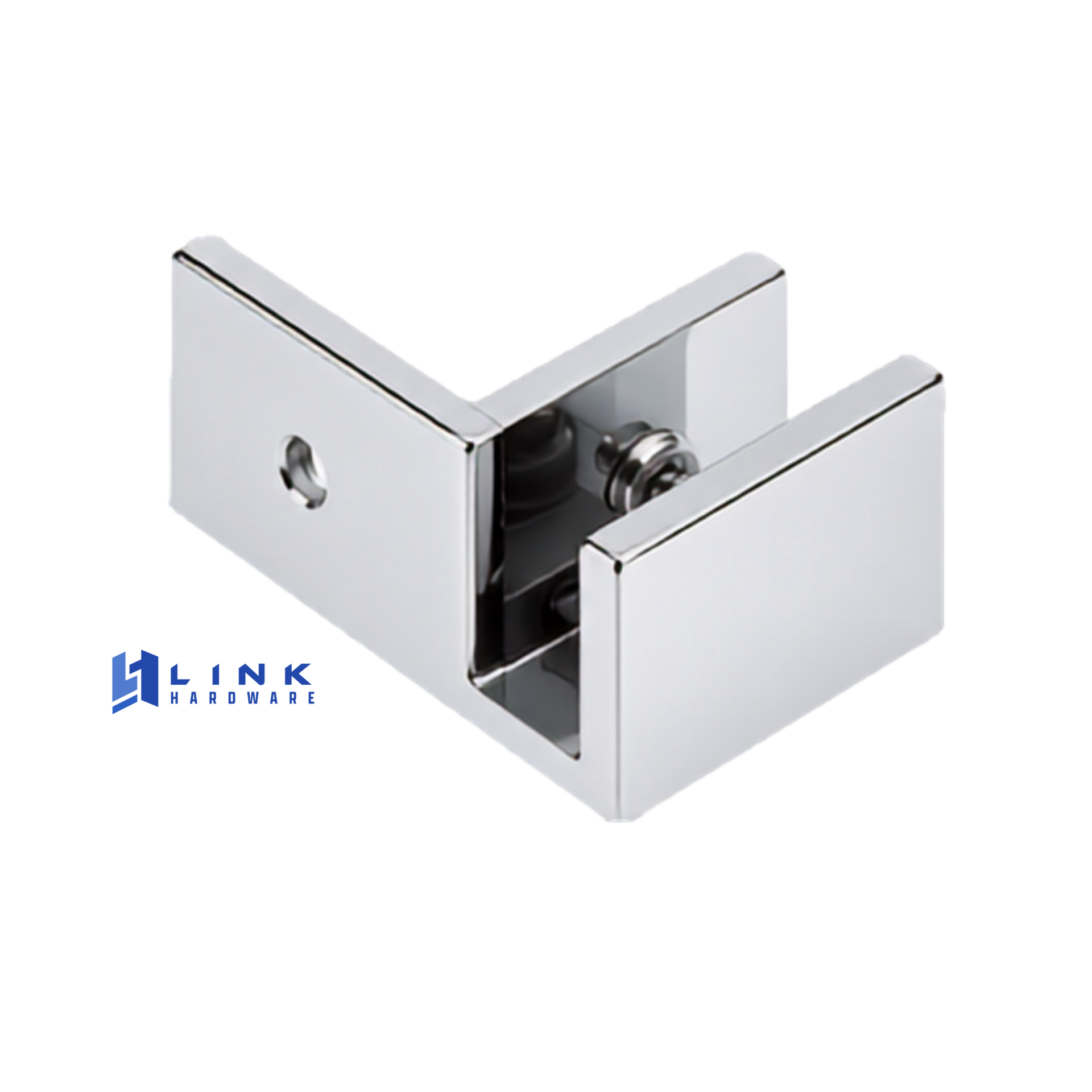

Link Hardware Geneva 037 Series Wall Mount Full Back Plate Standard Hinge – R
SKU
S037R
Categories Clamps, Link Hardware - All Products, Shower Hardware
- Wall Mount Full Back Plate Standard Model
- Suitable for glass of thickness 5/16″ to 1/2″
- Self-centering within 15° of the closing position
- Can hold up to 80 lbs. of weight using two hinges
- Can hold up to 120 lbs. of weight using three hinges
- Made with solid brass

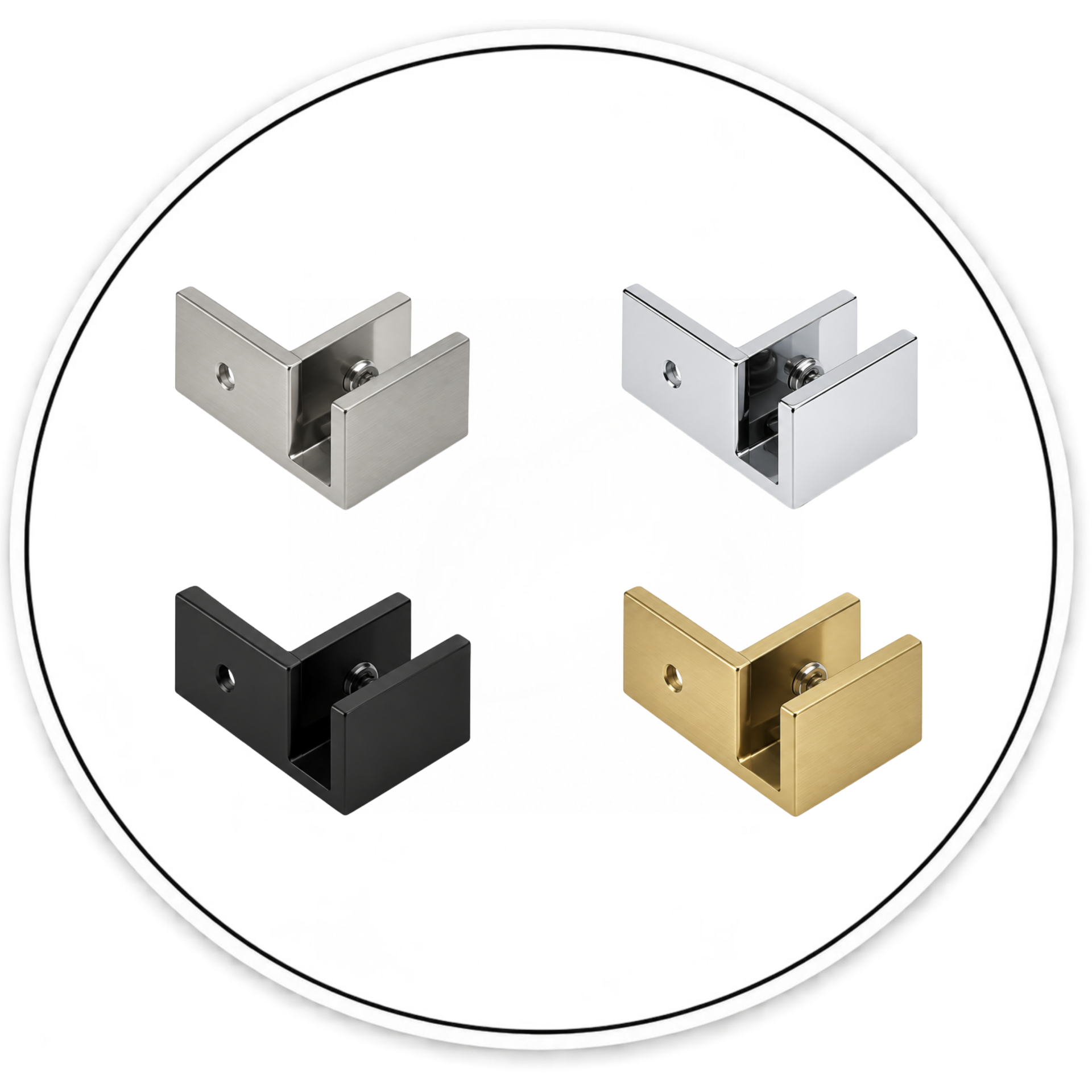

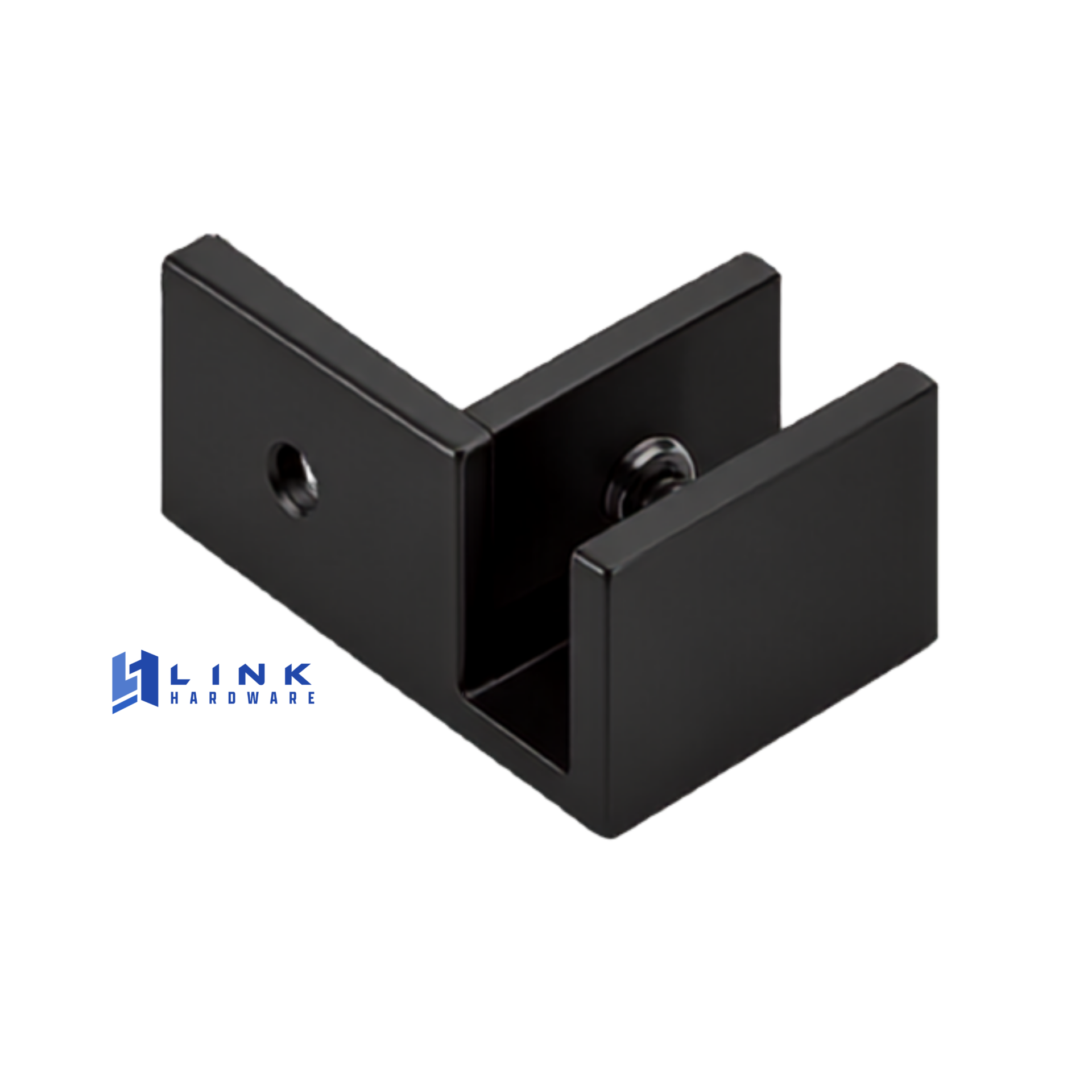

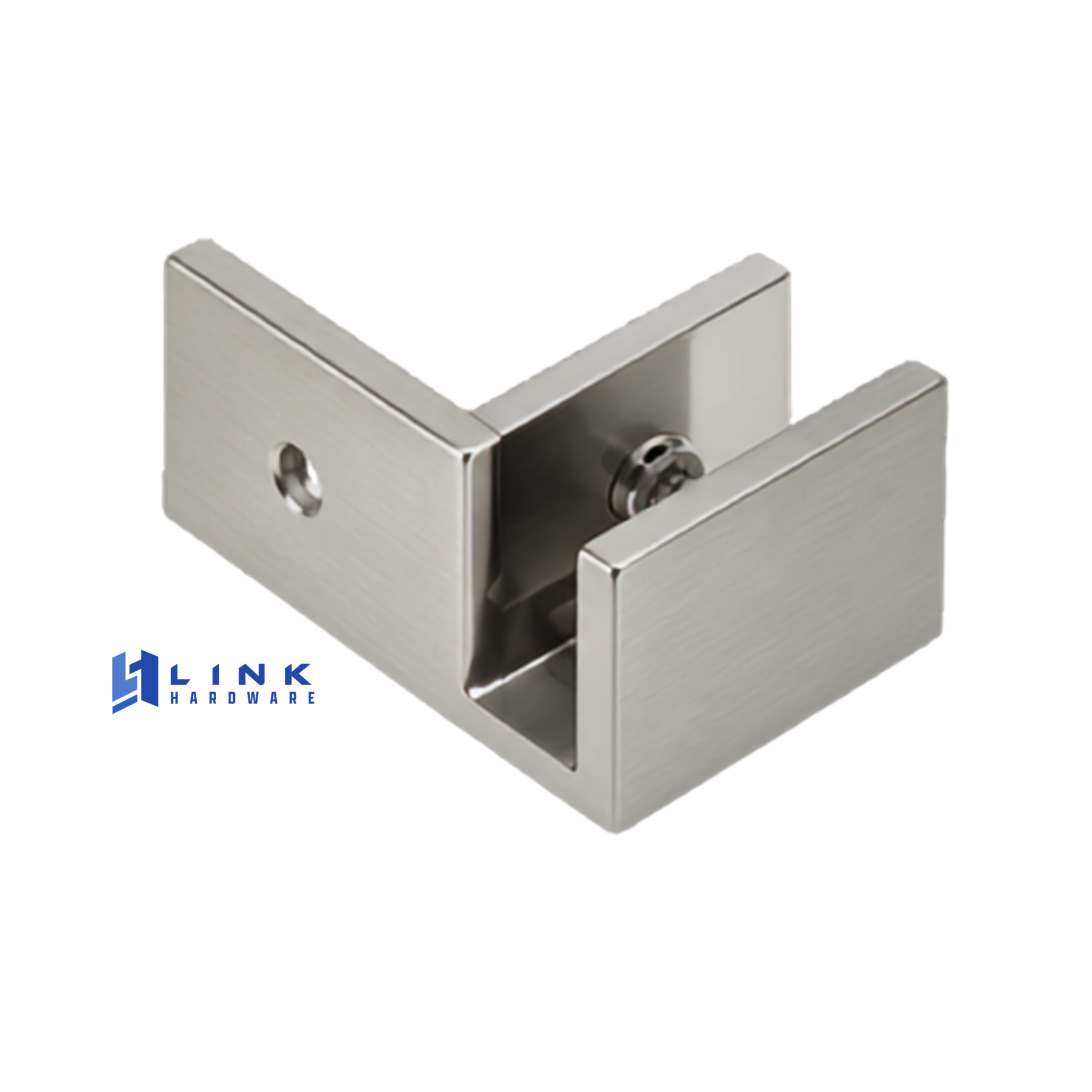

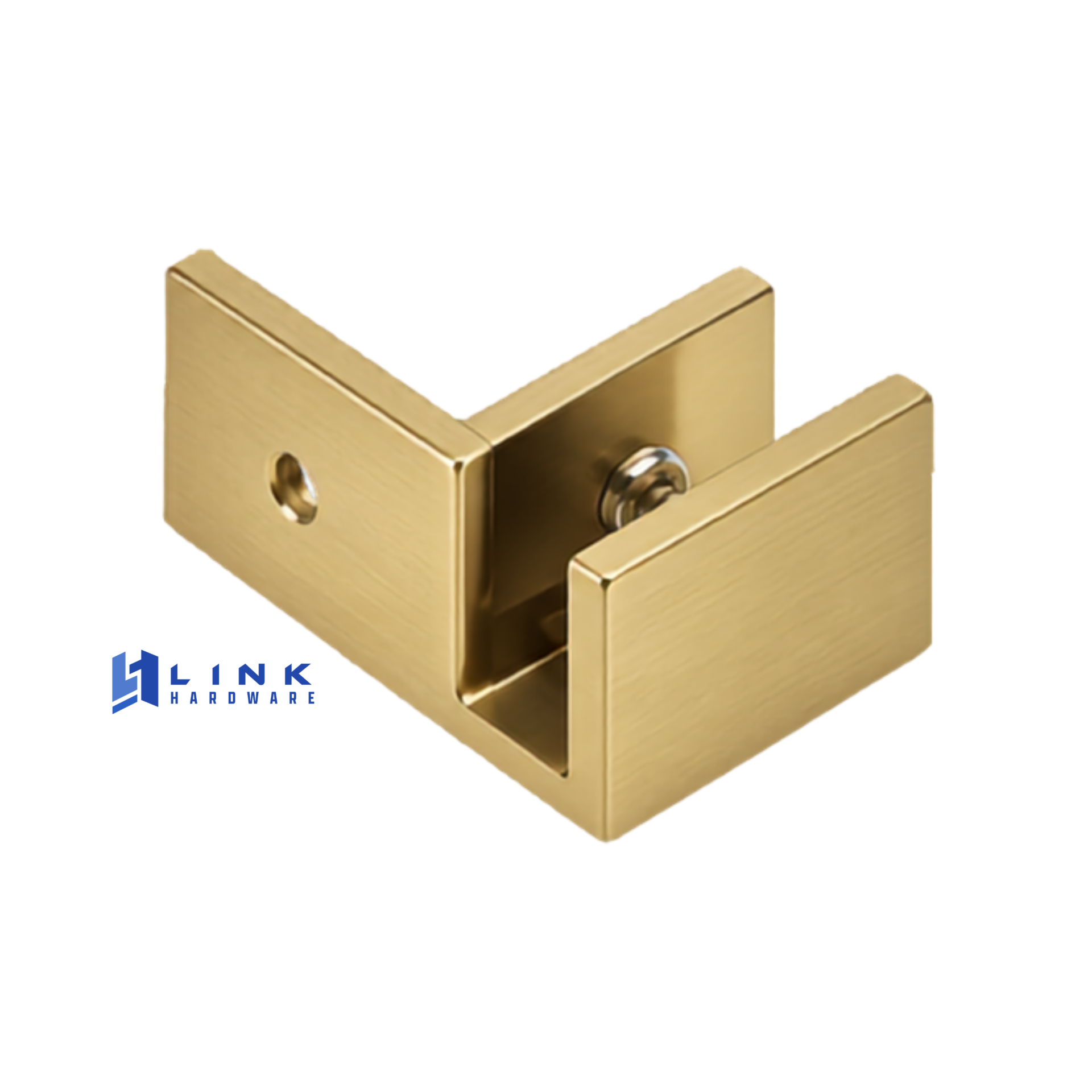

- Available in a variety of finishes
The Link Hardware Geneva 037 Series Wall Mount Full Back Plate Hinge is made of solid brass for maximum support and is suitable for glass panels of thickness 5/16″ to 1/2.” The glass can swing 90° inwards and 90° outwards, and a 5° pivot pin makes it self-centering when within 15° of the closing position. The hinge is available in a variety of six styles, including three different Glass-to-Glass and Wall Mount types, providing flexibility with design. Custom pivot pins available for the accommodation of “off-angle” installations.
