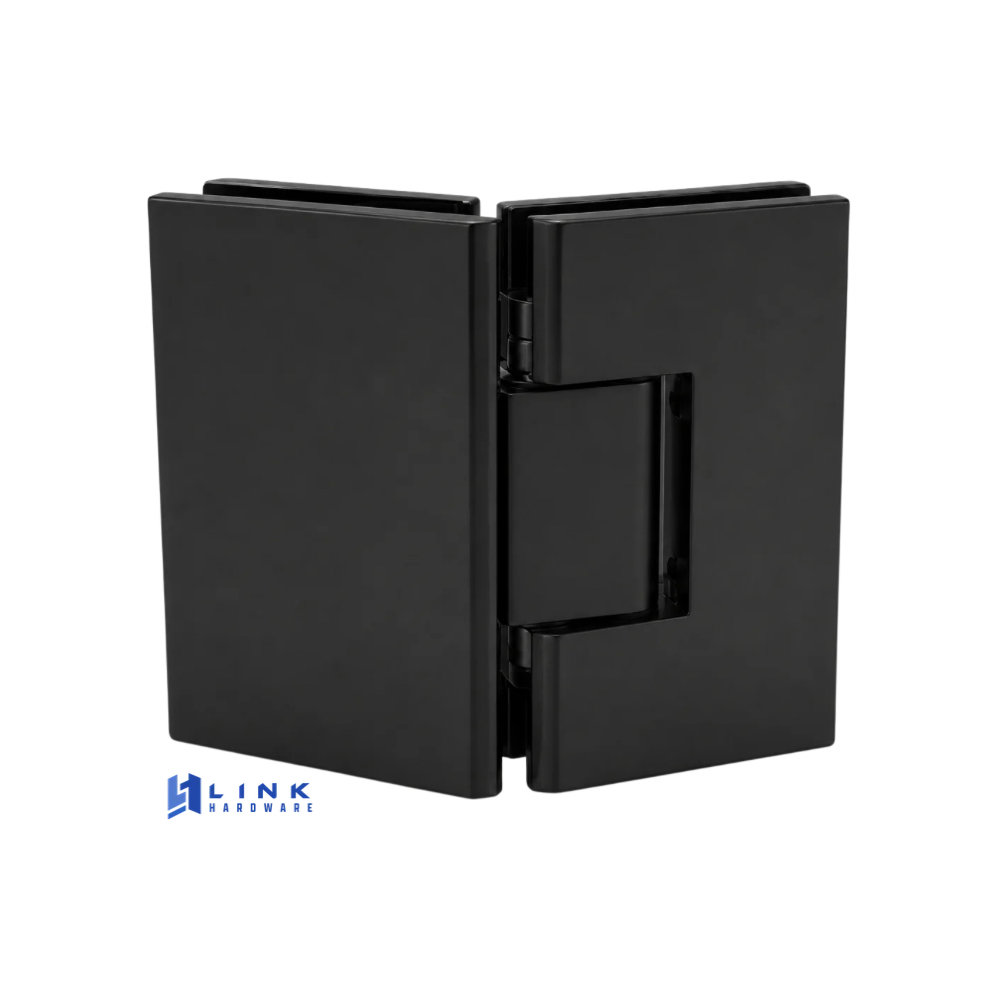

Link Hardware Heavy Duty Venice 045 Series 135 Degree Glass-to-Glass Hinge
- 135 degrees glass-to-glass
- Hinges can swing 90 degrees in and 90 degrees out
- Self-centering when 15o within closing position
- Suitable for glass panels of thickness 3/8” to 1/2″
- Two hinges together can hold up to 110 lbs. of weight
- Three hinges together can hold up to 140 lbs. of weight
- Made from solid brass

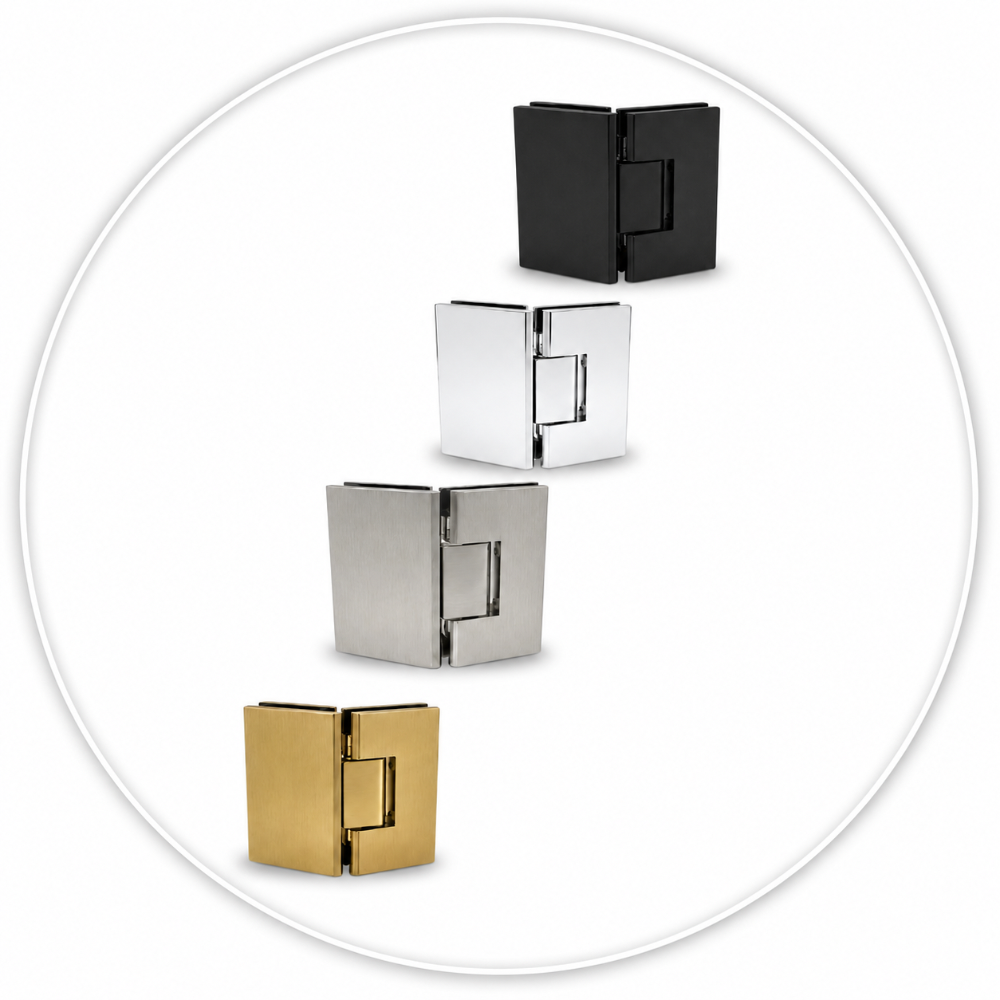

- Available in a variety of colors and finishes
Link Hardware Venice 045 Series 135 Degree Glass-to-Glass Hinges are the perfect solution for larger and heavier doors that simply can’t be held up by traditional standard-sized hinges. They are suitable for glasses of thickness 3/8” to 1/2,” and those as wide as 36.” Venice 045 Series Glass-to-Glass Hinges allow doors to swing 90 degrees in and 90 degrees out, and are self-centering within 15 degrees of the closing position. For the safety of “mouse-ears” cut-outs, the two steel pins should be left in place, they make the Vienna Hinge compatible with its own Link Hardware “mouse-ears” cut-out. However, removing the two pins can help achieve greater adjustability.

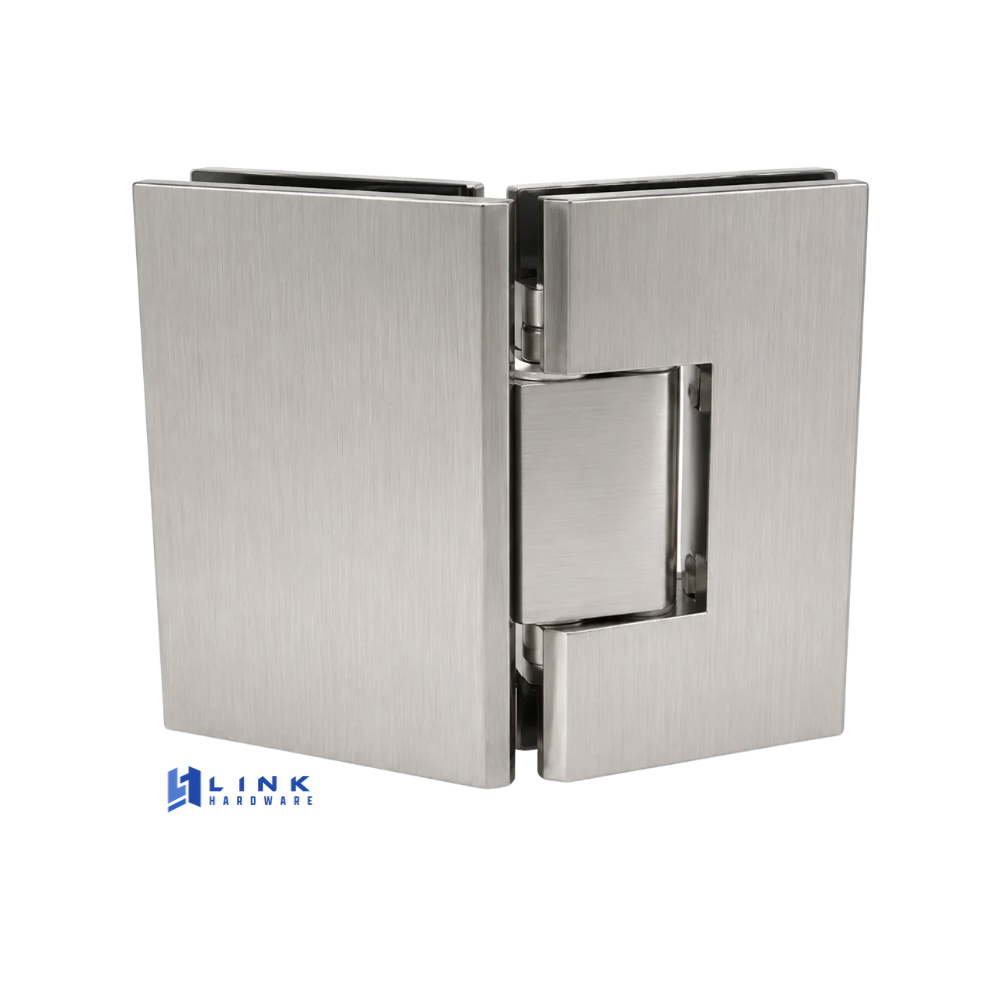

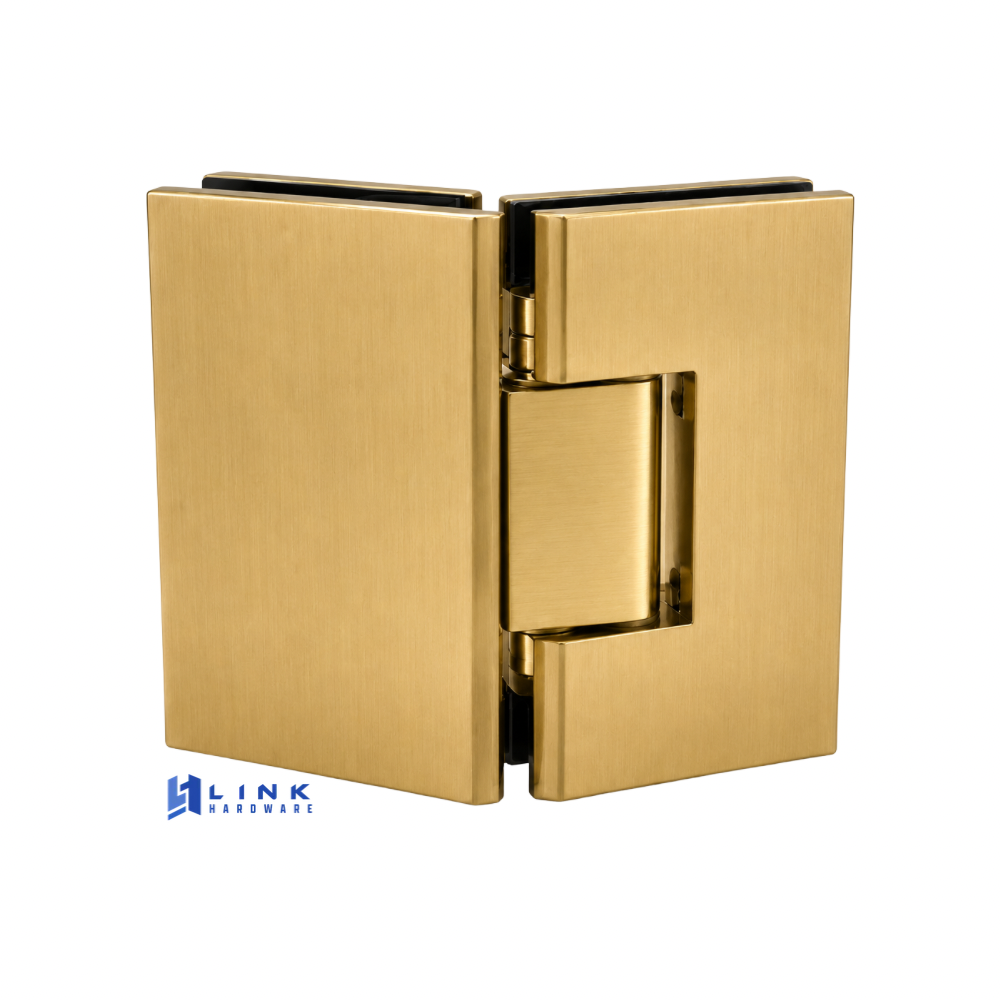

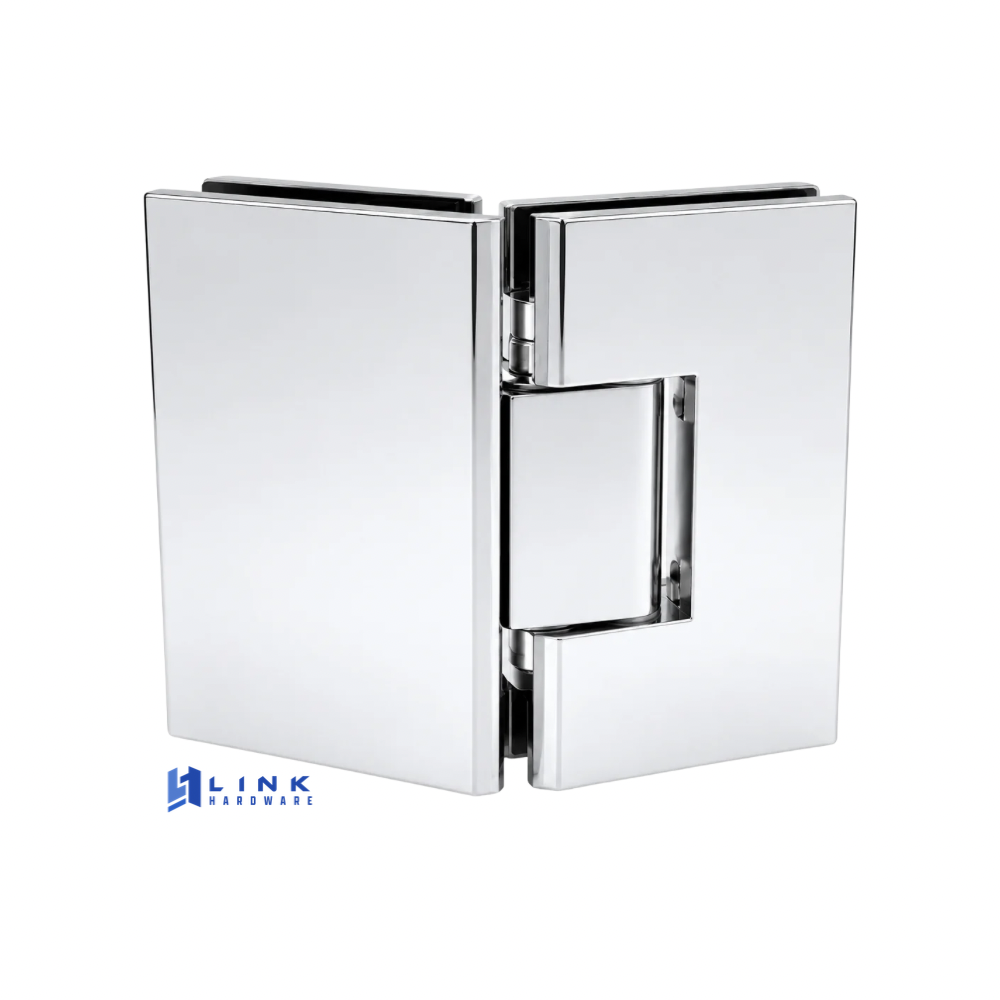

Finish: SB, BN, CH, MBL
