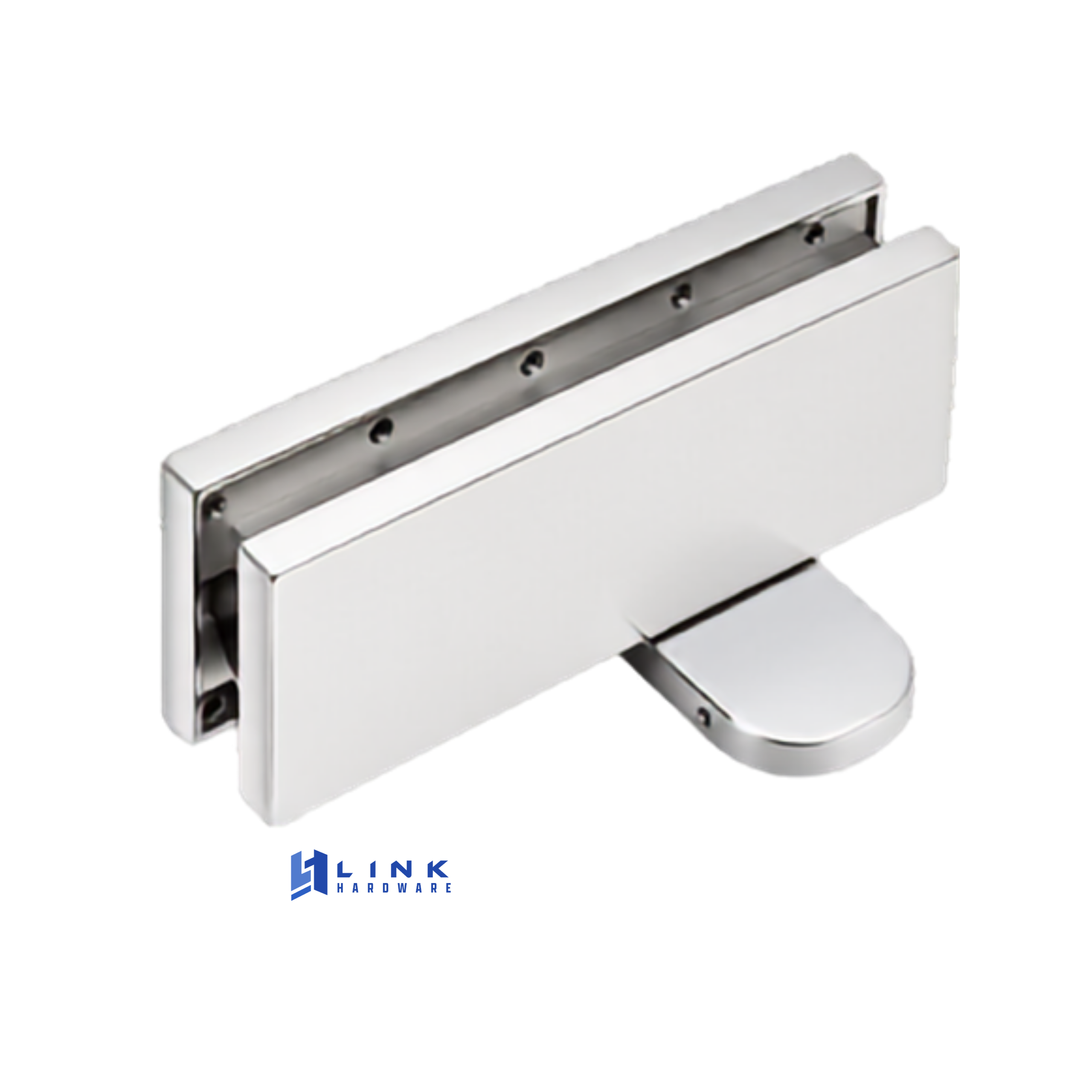

Link Hardware Hydraulic Patch Fitting with 2-9/16″ Setback (NHO)
SKU
BB380
Categories Commercial Hardware, Link Hardware - All Products, Patch Hardware
Link Hardware Hydraulic Patch Fittings have been specially designed for use with the E201A top patches and do not require any overhead or floor closing devices. These fittings come with two adjustable screws to adjust the latching and swinging speed. They are medium-duty for interior use and are suitable for doors of width 39″ with a maximum weight of 220 lbs. Glass fabrication is required for the use of these patch fittings.
- For use with PH21A top patches
- Flush mount – does not require any holes in the floor
- 2-9/16″ pivot point
- For interior use only
- Non Hold Open
- Suitable for use with tempered glass panels of 3/8″ to 1/2″

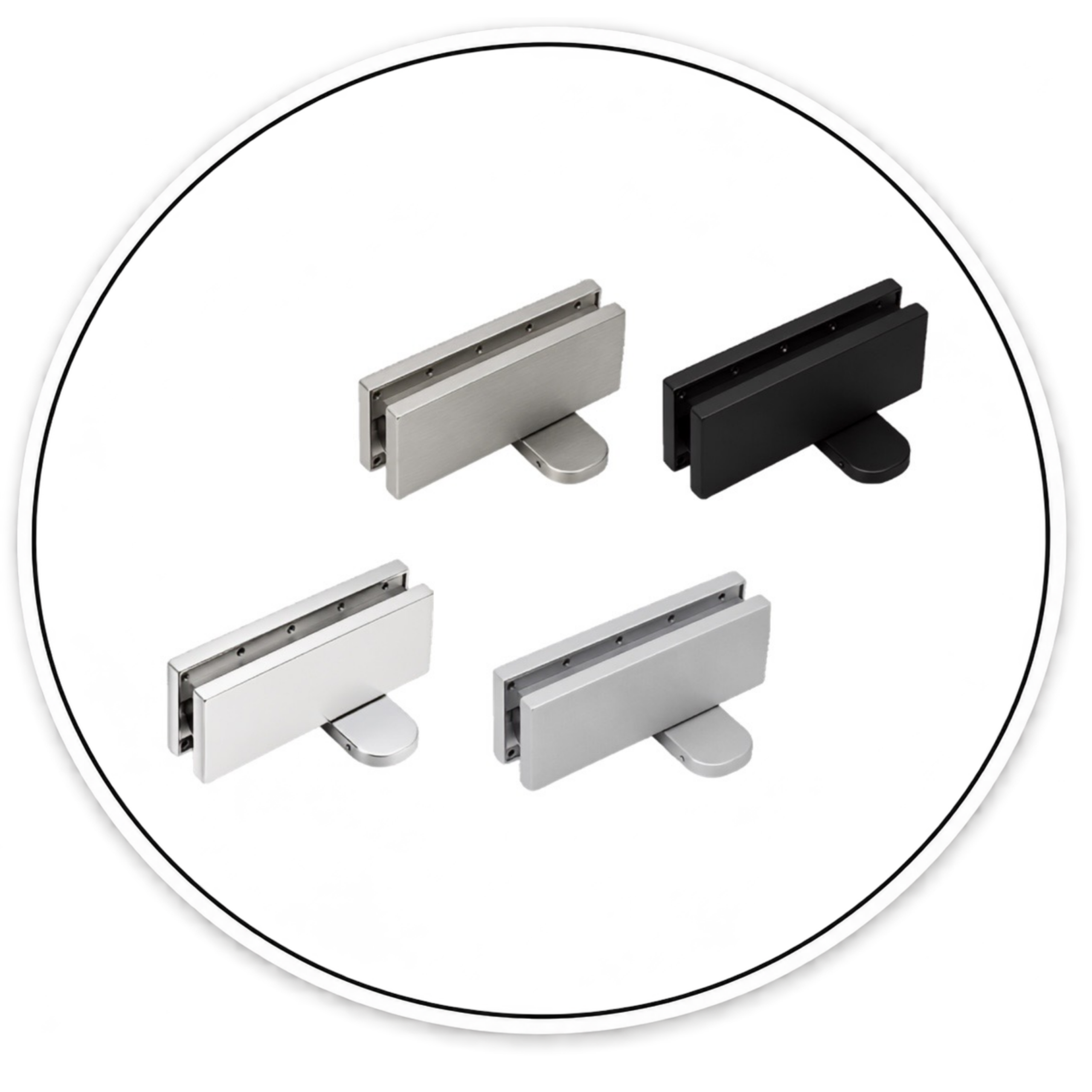

- Available in a variety of finishes
Finish: A, BS, MBL, PS
